Code: RV854

Manufacturer: Sheng Chyean

Type: SC-SH ( IB )

(capacity: dia. 4 - 16 mm). Year: 2008

complete line  including shot blasting machine, as well as/including: accessories (drawing die, tying device) replacement parts

Code: RV853

Manufacturer: SCHUMAG

Type: IIB

Year: 1976

Sr: 74106

(capacity: dia. 10 - 32 mm).

complete line retrofitted in 2010 (new flying shear, new electrics, new chamfering machine, new shot blasting machine DISA), including: accessories (drawing die, tying device)

Code: RV852

Manufacturer: SCHUMAG

Type: IB-8

Year: 1998

Sr: 96019

(capacity: dia. 6 - 20 mm). Pull: 8 ton

complete line, including shot blasting machine DISA, including: accessories (drawing die, tying device)

Code: RV851

Manufacturer: SCHUMAG

Type: IB-8

Year: 1975

Sr: 70108

(capacity: dia. 6 - 20 mm). Pull: 8 ton

complete line, including shot blasting machine DISA  and filter, accessories (drawing die, tying device)

Code: RV850

Manufacturer: SCHUMAG

Type: IB

year: 1996

Sr: 94043

(capacity: dia. 6 - 20 mm). Pull: 8 ton

Complete line, including shot blasting machine, including: accessories (drawing die, tying device)

Code: RV843

Manufacturer: LIDKOEPING

Type: 3B

Recommended working range: Ø 2.5 ÷ Ø 50 mm

Possible working range: Ø 0.5 – 125 mm

Maximum opening between wheels: 125 mm (L 100 – 7500 mm)

Line composed of: Grinder, Hydraulic Unit, Motors, New Electrics with PLC Siemens S7

Spindle: New

Outer diameter, new grinding wheel: 406 mm

Usable until diameter is reduced to: 290 mm

Standard width (grinding wheel): 203 mm

Maximum width with recessed wheels: 254 mm

Bore diameter: 254 mm

Outer diameter, new regulating wheel: 330 mm

Usable until diameter is reduced to: 255 mm

Standard width (regulating wheel): 254 mm

Maximum width with recessed wheels: 305 mm

Bore diameter: 203 mm

Speed (standard worm gear, infinitely variable): 0–115 r/min

Speed (hypoid gear, attachment 110, infinitely variable): 300 r/min

Main motor (max): 37 kW

Total power requirements: 42 kW

Code: RV845

Manufacturer: Schumag

Type: 0B

Size: Ø 2 ÷ 8 mm

Code: RV848

Manufacturer: Lidkoping

Type: CL660

Maximum opening between new wheels: 250 mm

Recommended working range: 5–175 mm

Recommended working range for bar grinding: 8–125 mm

Maximum workpiece length for infeed grinding, normal wheels: 605 mm

Maximum workpiece length for infeed grinding, recessed wheels: 695 mm

Outer diameter, new wheel, standard/maximum: 610/630 mm

Outer diameter, worn wheel: 380 mm

Normal width: 610 mm

Maximum width, with recessed wheel: 700 mm

Bore diameter (grinding wheel): 304.8 mm

Peripheral speed: 63 m/s

Main motor: 37–100 kW

Height from floor to spindle centers: 1060 mm

Footprint: 6000 x 2800 mm

Net weight: 13,500 kg

Capacity: dia. 150 / 350 mm

Bar Length: min 2.700 mm / max 10.000 mm

Feed Rolls: 20 HP Motor - 35/300/1200 rpm

Gear Ratio: 1:1536 low - 1:500 high

Speed: max 2 m/min on max diameter

Cutter Head: 150 HP Motor, 30/300/1200 rpm

Equipped with: Chip conveyor

(3) sets of heads for different sizes of bar

Code: RV836

Manufacturer: Schumag

Type: F3

Year: 1981

Serial n.: 81030

Working range: Ø 4÷30

square  4 ÷ 25 mm

hexagon 4 ÷ 27 mm

L= 8000 mm

Code: RV839

Manufacturer: Schumag

Type: IB

Year: 1970

Pulling force: 6,5 ton

Working range. Ø 5 – 22 mm

Line composed of:

Payoff

Pointing Machine

Shot Blaster, 3-turbine, by Fischer/Disa

Horizontal Pre-Straightener

Vertical Pre-Straightener

Draw Bench

H Straightener

V Straightener

Flying Shear, hydraulic cut

Tube Way, with pinch-rolls

Two-Roll Straightening Machine SAS (with spare rolls)

Pinch-roll

“V” table

Collecting Pockets

Electric Equipment

Hydraulic Equipment

Optional: Chamfering machine Schumag

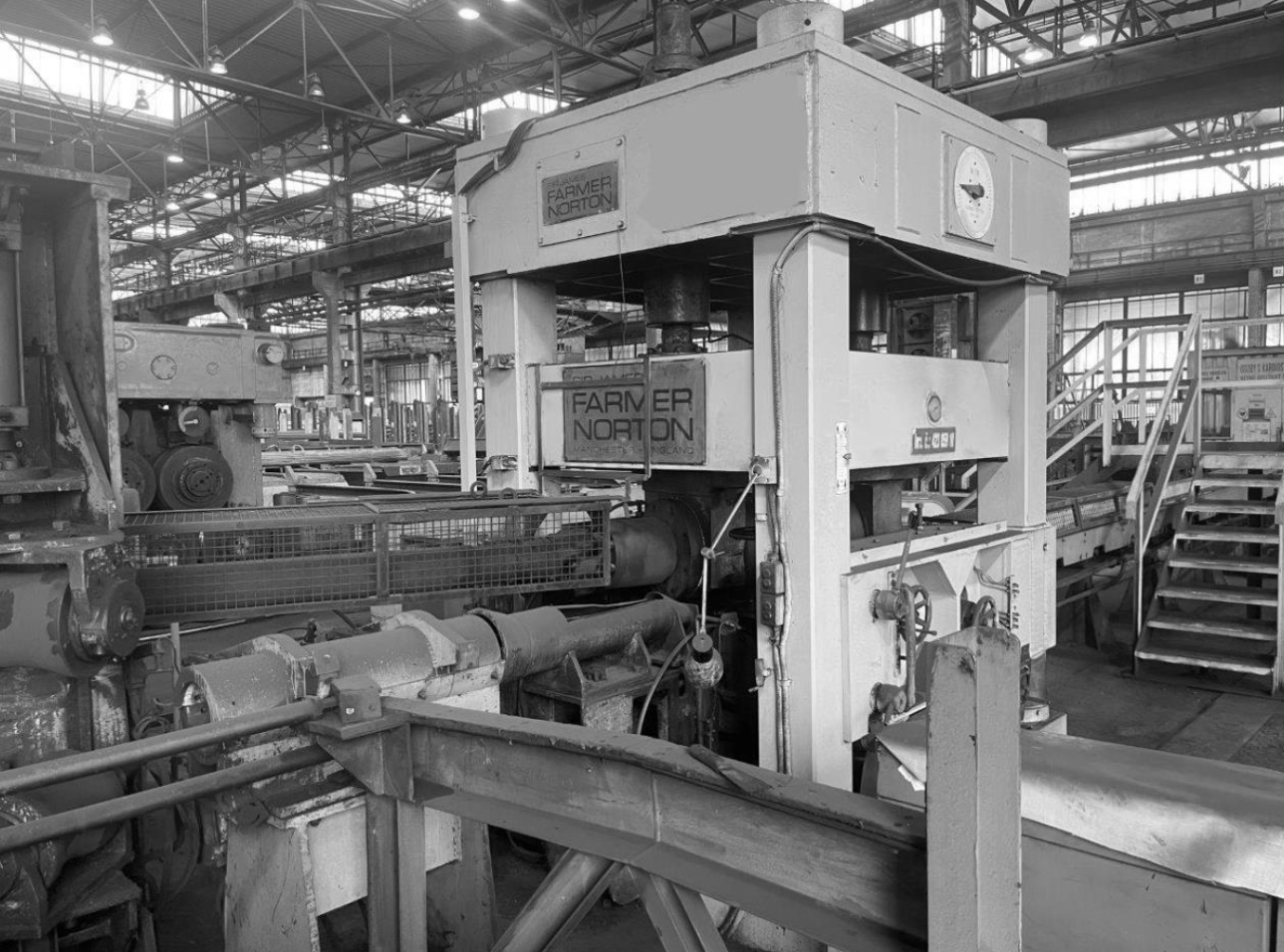

Code: RV814A

Manufacturer: Farmer Norton

Type: 2-1/2V

Year: 1975

Working range:

8 – 63mm(82mm)

Drives: 2

Speed: 1465/168 RPM

Voltage: 400 V

Roll Height Adjustment:

2.2 kW 1500 RPM

Complete with

Pinch Roll

Operator’s Panel

Extension Shafts

Manufacturer: SCHUMAG

Type: KZRP IIIB

Year: 1963

Serial n.6285

Pulling Force: 23 ton

Working range:

Ø 19 – 35 mm; ▢ 19-30 mm

⬡ 19-32 mm

Line composed of:

Double Drum Payoff

Coil Opener

Horizontal Pre-Straightener

Vertical Pre-Straightener

Hydraulic Push Pointer

Draw Bench

H Straightener

V Straightener

Flying Shear

Tube Way

Two-Roll Straightening Machine

Delivery Table

Electric Equipment and Hydraulic Equipment

Code: RV 799B

Manufacturer: BRONX

Model: PBRV 6

Year:1980

Working range - for bars with tensile strength of: 600 N/mm2: Ø 15 ÷ 110 mm

700 N/mm2: Ø 15 ÷ 100 mm

1.000 N/mm2: Ø 15 ÷ 85 mm

Roll Angle Adj.: 10 to 20 degrees

Working Direction: Right to left

Complete of:

Entry Table

Entry Canal

Machine With Rolls, Gear-Boxes And Motors

Exit Canal

Pocket

Code: RV799A

Manufacturer: MAIR, ITALY

Year: 1998

Bars: Round, square, hexagon

Range: Ø 20 – 100 mm

Max Lenght: 9.000 mm

Pulling Force: 60 ton

Power: 315 kW

Push-pointer: 120 ton

(optional) complete line with Sawing Plant Mair  and  2 roll straightener Bronx PBRV 6

4 Sawing Heads

Complete of:

Entry Table, Entry Canal, Machine With Rolls, Gear-Boxes And Motors, Exit Canal, Pocket, Hydraulic Unit, Electric equipment

Code: RV829

Manufacturer: Bultmann

Year: 1986

Pull: 20 ton

Working Range: Ø 10-50 mm (solid bar or tube of equivalent section)

PLC:Siemens S7

Line composed of:

Main machine

Electric equipment, Salt tank

Hydraulic power pack

Tooling, Tool machine,

Spare draw carriage (revamped), Spare hydraulic cylinder (new), Spare main motor and spare pump for the hydraulic unit

Several spare parts

Code: RV825

Manufacturer: SCHUMAG

Type: SCHLEIPO Gr. II

Year: 1990

Serial n. 90021

Working range: Ø5 ÷Ø50mm

Grinding Wheels: 2

Peripheral speed: 35 / 45 m/sec

Drive power per grinding wheel: 37 kW

Line composed of:

Loading table

Entry roller way

Grinding machine

Exit belt

Discharge table with pockets

Cooling and Filtering tank

Electric cabinet

Spare Parts

Use e Maintenance manual

Code: RV826

Manufacturer: SCHUMAG

Type: SCHLEIPO Gr. I

Year: 1990

Working range: Ø 5 ÷ Ø 25 mm

Grinding Wheels: 2

Peripheral speed: 35 / 45 / 60 m/sec

Drive power per grinding wheel: 11 kW / 22 kW /30 kW

Dimensions, max.: Outer diameter: 400 mm Width: 200 mm

Bore: 203.2 mm

Housing length: 218 cm

Housing width: 250 cm

Weight: Approx. 6.9 ton

Line composed of:

Entry table + canal

Exit canal + pockets

Pinch Roll

Hydraulic Unit

Electric cabinet with all cables

Code:RV804

Manufacturer:LANDGRAF (Italy)

Model:T100

Year:1988

Range:Ø 20–100 mm(finished diameter)

Tolerance:h9

Bar Length:1.900–6.500 mm

Peeling head:320–2.400 rpm

Speed up to 40 m/min

Complete with:

 Loading table with chain transfer

 Entry Roller Way, adjustable

 Exit Roller Way, adjustable

 Electric equipment

 Hydraulic power pack

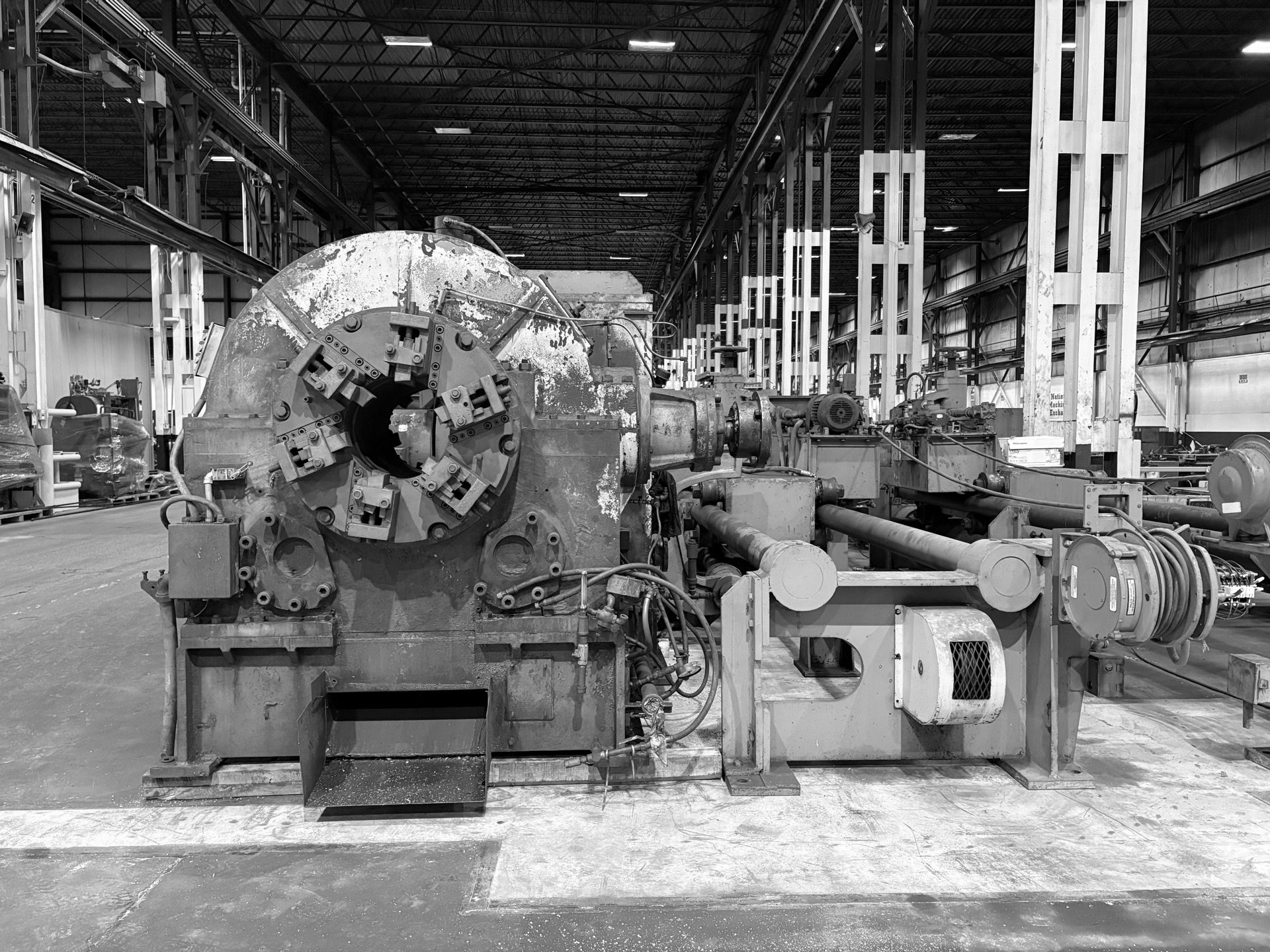

Code:RV787

Manufacturer GFM

Model SKK10

Year 2000

Forging box:

Shear force per hammer 1250 kN

Number of hammers 4

Strokes per min 1500 / min

Diameter adjustment range 60 mm

Forging eccentricity 2,5 mm

Hammer length 106 mm

Bar/Tube diameter max 58 mm

Clamping head:

Feed force 1-70 kN

Feed 5-500 mm/s

Clamping head bed:

Workpiece length max 175 mm

Clamping head stroke 600 mm

Hydraulic counter-holder:

Clamping force max 2-40 kN

Stroke 200 mm

Electric Equipment:

Forging motor 75 kW 400 V 50 Hz

Clamping head motor 2,2 kW 400 V 50 Hz

Various hydraulic motors 35 kW 400 V 50 Hz

Remaining consumers 4,5 kW 400 V 50 Hz

Auxiliary equipment 1,3 kW 220 V 50 Hz

Total nominal power 118 kW

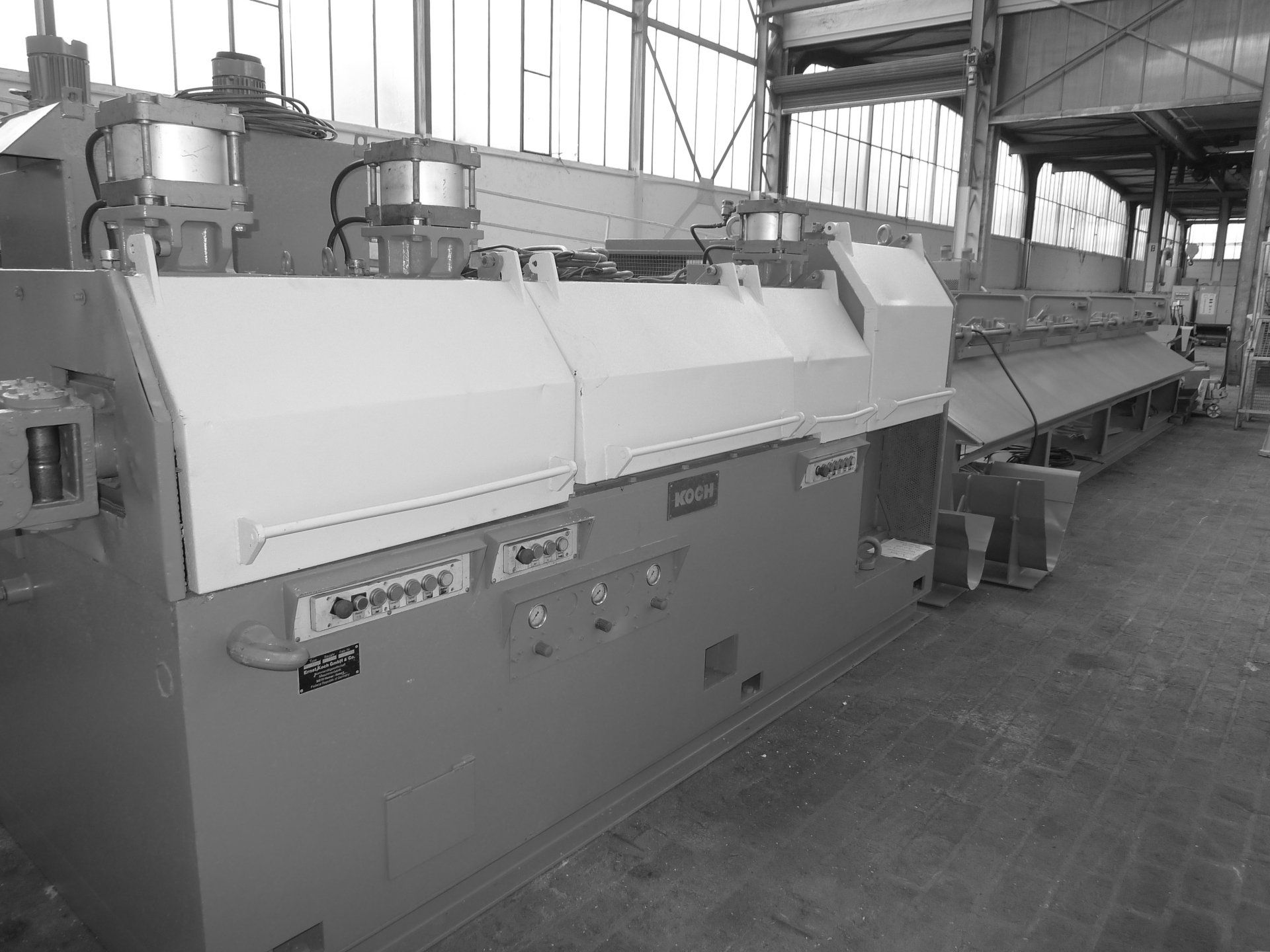

Code:RV732

Manufacturer: KOCH

Model:WD 1

Serial Nr.:13.184-185

Year:1989

Capacity:Ø 8–14 mm

Tensile strength: 500 N/mm²

Length tolerance: +/- 3 mm

Cutting length: 2.000 - 8.000 mm

Speed:max 180 m/min

Motor power:55 kW

Voltage:380V – 50 Hz

PLC:Siemens S5

Manufacturer:SCHUMAG

Model:KZ IV B

Year:1995

Serial n.94058

Pulling Force:450 kN

Working range Ø 18 ÷ 50 mm

Hexagon:max 45 mm

Square:max 38 mm

Speed:Max 90 m/min

Line composed of

New (year 2019) hydraulic push-pointer

Draw-bench, with gearbox and motor

Horizontal straightener

Vertical straightener

Hydraulic impact flying shear

Pinch-roll

Sound abated canal

Pinch-roll

Two-roll straightening machine, horizontal

V delivery table

Collecting pockets

Exit table/s

Hydraulic equipment

Electric equipment

Manuals and drawings

Tooling

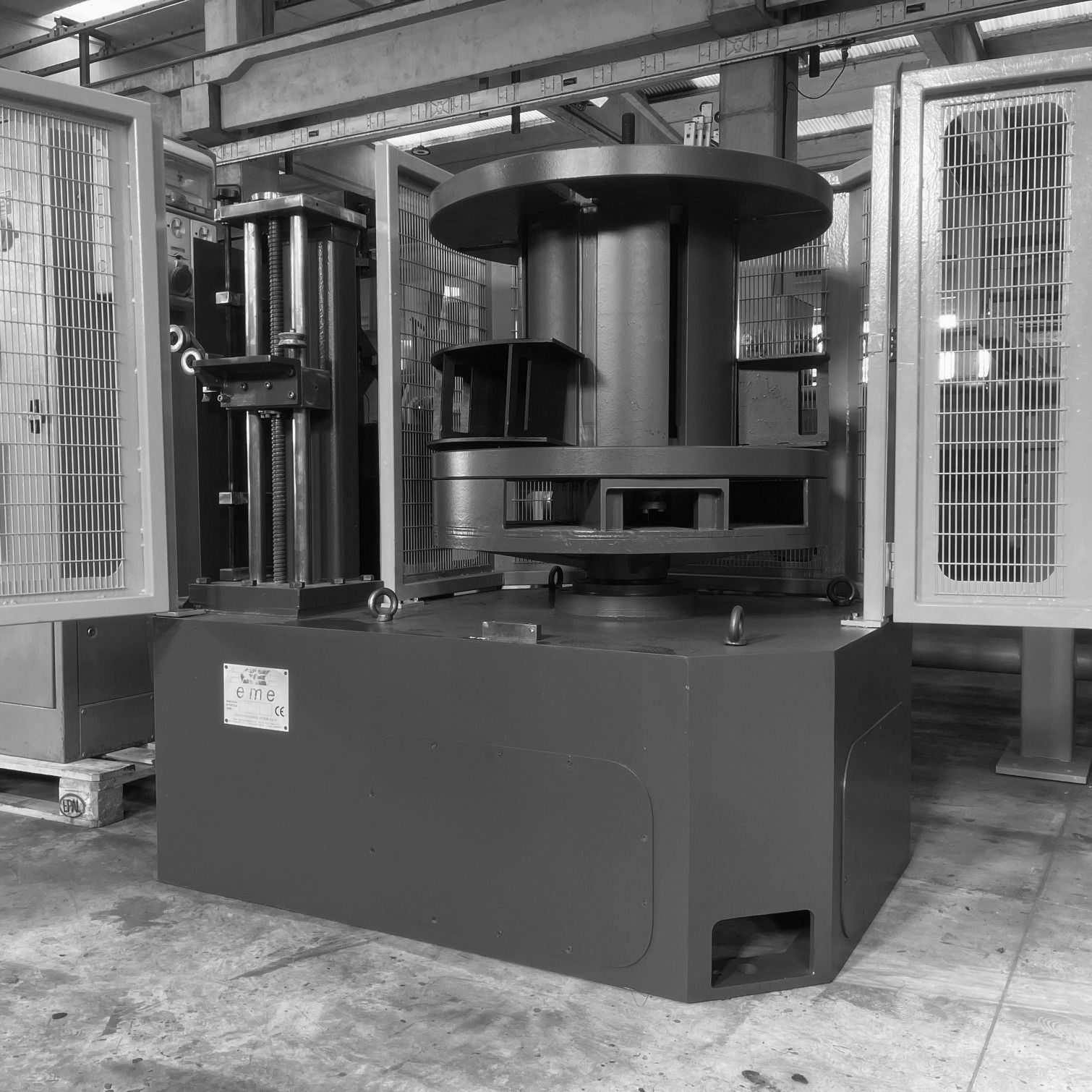

Code:RV764

Manufacturer:EME

Model:SPV/900

Serial n.02006

Year:2002

Code:RV765

Manufacturer:Mill

Serial n.1358

Code:RV766.1

Manufacturer:COMAPAC

Model:BV-12/2

Serial n.97-22

Year:1997
